Send HAProxy ALOHA logs to an external syslog server

HAProxy ALOHA does not permanently store logs. It stores them only in memory and not on the filesystem, making them available for viewing for a limited amount of time via the Logs tab. For long-term storage of logs, deploy a remote syslog server and configure HAProxy ALOHA to ship logs to it.

HAProxy ALOHA generates several types of logs, each of which can be collected and sent to a separate or a shared syslog server. The types are defined in the table below, where each has a unique name that you will use to configure it.

Name Description
system Major operating system events
events Load balancer events
console Administration Web UI events
traffic Traffic traversing all HAProxy ALOHA frontends

Info

  • Select the Logs tab to view a limited history of in-memory logs.
  • You can also log the traffic that traverses a specific HAProxy ALOHA frontend

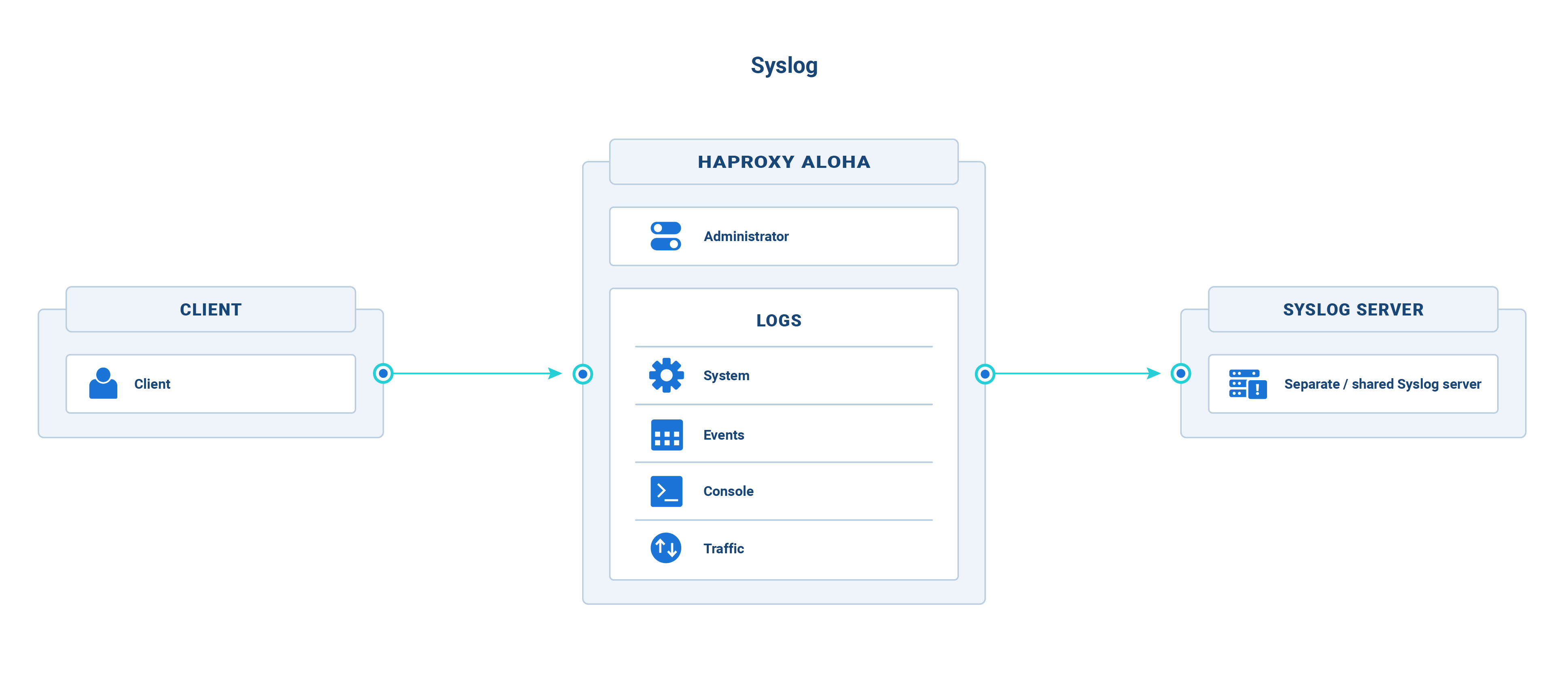

Syslog

Configure the syslog server Jump to heading

You must configure a remote syslog server to receive log entries.

  1. Install a syslog server such as rsyslog.

    Example:

    nix
    sudo apt install rsyslog
    nix
    sudo apt install rsyslog
  2. Create a file named /etc/rsyslog.d/10-aloha.conf with the directives below.

    Here, we configure rsyslog to listen on all IP addresses at port 514. Store incoming log messages in the file /var/log/aloha.log when they come from the HAProxy ALOHA IP address.

    /etc/rsyslog.d/10-aloha.conf
    text
    $ModLoad imudp
    $UDPServerRun 514
    $ActionFileDefaultTemplate RSYSLOG_TraditionalFileFormat
    if $fromhost-ip=='172.16.24.237' then /var/log/aloha.log
    /etc/rsyslog.d/10-aloha.conf
    text
    $ModLoad imudp
    $UDPServerRun 514
    $ActionFileDefaultTemplate RSYSLOG_TraditionalFileFormat
    if $fromhost-ip=='172.16.24.237' then /var/log/aloha.log

    The directives are as follows:

    Directive Description
    $ModLoad imudp Receive logs over UDP.
    $UDPServerRun 514 Start on the specified port.
    $ActionFileDefaultTemplate RSYSLOG_TraditionalFileFormat Use the traditional syslog format.
    if $fromhost-ip==‘172.16.24.237’ then /var/log/aloha.log Store incoming log messages in the file /var/log/aloha.log when they come from the HAProxy ALOHA IP address. Replace 172.16.24.237 with your own IP address. You can specify several of these directives, or use startswith to match a range of IPs.
  3. Restart the rsyslog server.

    nix
    sudo systemctl restart rsyslog
    nix
    sudo systemctl restart rsyslog
  4. To make the configuration changes persist after a reboot, go to the Setup tab and click Save within the Configuration section.

Log operating system events Jump to heading

Configure the system log type to send major HAProxy ALOHA operating system events, such as kernel errors, to an external syslog server.

  1. In the Services tab, click syslog setup.

    Syslog Setup

  2. In the service syslog system section, specify the IP address and port of the destination Syslog server.

    Example:

    Send operating system events to a syslog server listening at 172.16.24.236 on UDP port 514.

    ruby
    service syslog system
    server 172.16.24.236:514
    ruby
    service syslog system
    server 172.16.24.236:514
  3. Restart the syslog service.

    Syslog Restart

    The Message 7010: Last action returns success message displays.

  4. To make the configuration changes persist after a reboot, go to the Setup tab and click Save within the Configuration section.

Log load balancer events Jump to heading

Configure the events log type to send errors related to starting/stopping the load balancer, and related errors or warnings, to an external syslog server.

  1. In the service syslog events section, specify the IP address and port of the destination syslog server.

    Example:

    Send load balancer errors to a syslog server listening at 172.16.24.236 on UDP port 514.

    ruby
    service syslog events
    server 172.16.24.236:514
    ruby
    service syslog events
    server 172.16.24.236:514
  2. Restart the syslog service.

  3. To make the configuration changes persist after a reboot, go to the Setup tab and click Save within the Configuration section.

Log administration events Jump to heading

Configure the console log type to send events such as logins to the HAProxy ALOHA command-line interface to an external syslog server.

  1. In the service syslog console section, specify the IP address and port of the destination syslog server.

    Below, we send login events to a syslog server listening at 172.16.24.236 on UDP port 514.

    ruby
    service syslog console
    server 172.16.24.236:514
    ruby
    service syslog console
    server 172.16.24.236:514
  2. Restart the syslog service.

  3. To make the configuration changes persist after a reboot, go to the Setup tab and click Save within the Configuration section.

Log traffic from all frontends Jump to heading

Configure the traffic log type to send traffic logs for all frontends to an external syslog server.

  1. In the service syslog traffic section, specify the IP address and port of the destination syslog server.

    Below, we send traffic logs to a syslog server listening at 172.16.24.236 on UDP port 514.

    ruby
    service syslog traffic
    server 172.16.24.236:514
    ruby
    service syslog traffic
    server 172.16.24.236:514
  2. Restart the syslog service.

  3. To make the configuration changes persist after a reboot, go to the Setup tab and click Save within the Configuration section.

Log traffic from a specific frontend Jump to heading

You can log traffic that traverses a specific HAProxy ALOHA frontend.

  1. On the remote rsyslog server, edit the file /etc/rsyslog.d/10-aloha.conf file.

    Below, we capture messages from syslog facilities local0 and local1, and write them to the frontend1-traffic.log and frontend2-traffic.log file.

    text
    local0.* /var/log/frontend1-traffic.log
    local1.* /var/log/frontend2-traffic.log
    text
    local0.* /var/log/frontend1-traffic.log
    local1.* /var/log/frontend2-traffic.log
  2. On HAProxy ALOHA, add the following directive to a frontend section:

    text
    log <syslog server IP address>:<port>
    text
    log <syslog server IP address>:<port>

Below, we send log messages to facility local0 to an rsyslog server listening at 172.16.24.236 on UDP port 514.

haproxy
frontend webservice
bind :80
mode http
log 172.16.24.236:514 local0
option httplog
default_backend webfarm
haproxy
frontend webservice
bind :80
mode http
log 172.16.24.236:514 local0
option httplog
default_backend webfarm
  1. To make the configuration changes persist after a reboot, go to the Setup tab and click Save within the Configuration section.

Test the setup Jump to heading

  1. Make a web request either to:

    • the HAProxy ALOHA Web UI.
    • a HAProxy ALOHA frontend.
    nix
    curl http://172.16.24.237:8080
    nix
    curl http://172.16.24.237:8080
  2. Inspect the logs on your rsyslog server.

    nix
    sudo less /var/log/aloha.log
    nix
    sudo less /var/log/aloha.log
    output
    text
    Jan 13 11:12:58 ALOHA1 alohactl2[15685] ALOHA1# /opt/bin/alohactl2 -S root l7_dump
    Jan 13 11:12:58 ALOHA1 alohactl2[15722] ALOHA1# /opt/bin/alohactl2 -S root l4_dump
    Jan 13 11:13:04 ALOHA1 alohactl2[15859] ALOHA1# /opt/bin/alohactl2 -S root l7_dump
    Jan 13 11:52:27 172.16.24.237 haproxy[9522]: 172.29.1.90:46714 [13/Jan/2022:11:52:27.745] webservice webfarm/websrv1 0/0/0/1/1 200 818 - - --NI 1/1/0/0/0 0/0 "GET / HTTP/1.1"
    output
    text
    Jan 13 11:12:58 ALOHA1 alohactl2[15685] ALOHA1# /opt/bin/alohactl2 -S root l7_dump
    Jan 13 11:12:58 ALOHA1 alohactl2[15722] ALOHA1# /opt/bin/alohactl2 -S root l4_dump
    Jan 13 11:13:04 ALOHA1 alohactl2[15859] ALOHA1# /opt/bin/alohactl2 -S root l7_dump
    Jan 13 11:52:27 172.16.24.237 haproxy[9522]: 172.29.1.90:46714 [13/Jan/2022:11:52:27.745] webservice webfarm/websrv1 0/0/0/1/1 200 818 - - --NI 1/1/0/0/0 0/0 "GET / HTTP/1.1"
    nix
    sudo less /var/log/frontend1-traffic.log
    nix
    sudo less /var/log/frontend1-traffic.log
    output
    text
    Jan 13 14:09:38 172.16.24.237 haproxy[18201]: 172.29.1.90:40710 [13/Jan/2022:14:09:38.751] webservice webfarm/websrv1 0/0/0/1/1 200 818 - - --NI 1/1/0/0/0 0/0 "GET / HTTP/1.1"
    Jan 13 14:23:09 172.16.24.237 haproxy[18201]: 172.29.1.90:45748 [13/Jan/2022:14:23:09.407] webservice webfarm/websrv1 0/0/0/1/1 404 304 - - --NI 1/1/0/0/0 0/0 "GET /8080 HTTP/1.1"
    Jan 13 14:23:50 172.16.24.237 haproxy[18201]: Proxy webservice stopped (cumulated conns: FE: 2, BE: 0).
    Jan 13 14:25:21 172.16.24.237 haproxy[19247]: 172.29.1.90:37120 [13/Jan/2022:14:25:21.318] webservice webfarm/websrv1 0/0/0/0/0 200 602 - - --NI 1/1/0/0/0 0/0 "GET / HTTP/1.1"
    Jan 13 14:25:21 172.16.24.237 haproxy[19247]: 172.29.1.90:37120 [13/Jan/2022:14:25:21.548] webservice webfarm/websrv1 0/0/0/0/0 404 351 - - --VN 1/1/0/0/0 0/0 "GET /favicon.ico HTTP/1.1"
    Jan 13 14:25:37 172.16.24.237 haproxy[19247]: 172.29.1.90:37224 [13/Jan/2022:14:25:37.052] webservice webfarm/websrv1 0/0/0/0/0 200 818 - - --NI 1/1/0/0/0 0/0 "GET / HTTP/1.1"
    output
    text
    Jan 13 14:09:38 172.16.24.237 haproxy[18201]: 172.29.1.90:40710 [13/Jan/2022:14:09:38.751] webservice webfarm/websrv1 0/0/0/1/1 200 818 - - --NI 1/1/0/0/0 0/0 "GET / HTTP/1.1"
    Jan 13 14:23:09 172.16.24.237 haproxy[18201]: 172.29.1.90:45748 [13/Jan/2022:14:23:09.407] webservice webfarm/websrv1 0/0/0/1/1 404 304 - - --NI 1/1/0/0/0 0/0 "GET /8080 HTTP/1.1"
    Jan 13 14:23:50 172.16.24.237 haproxy[18201]: Proxy webservice stopped (cumulated conns: FE: 2, BE: 0).
    Jan 13 14:25:21 172.16.24.237 haproxy[19247]: 172.29.1.90:37120 [13/Jan/2022:14:25:21.318] webservice webfarm/websrv1 0/0/0/0/0 200 602 - - --NI 1/1/0/0/0 0/0 "GET / HTTP/1.1"
    Jan 13 14:25:21 172.16.24.237 haproxy[19247]: 172.29.1.90:37120 [13/Jan/2022:14:25:21.548] webservice webfarm/websrv1 0/0/0/0/0 404 351 - - --VN 1/1/0/0/0 0/0 "GET /favicon.ico HTTP/1.1"
    Jan 13 14:25:37 172.16.24.237 haproxy[19247]: 172.29.1.90:37224 [13/Jan/2022:14:25:37.052] webservice webfarm/websrv1 0/0/0/0/0 200 818 - - --NI 1/1/0/0/0 0/0 "GET / HTTP/1.1"

Syslog service reference Jump to heading

The syslog service in the Services tab supports the following configuration directives:

Directive Description
console_level <level> Sets the maximum syslog severity level to send to the console.
forward_timestamp (version 13.5 and 14.0) Adds an RFC 3164 header to log messages if it is missing (which includes a timestamp and hostname). The log’s raw message changes from:

<134>haproxy[26940]: Connect from 192.168.68.117:60749 to 192.168.68.124:80 (web/TCP)

to:

<134>Jan 24 16:49:40 ALOHA1 haproxy[26940]: Connect from 192.168.68.117:60749 to 192.168.68.124:80 (web/TCP)
keyid <key> An identier to use for a second syslog server.
listen <local IP[:port]> Collect UDP log messages from the given local IP address and optional port.
listen_kernel Collect kernel messages.
[no] listen_unix Collect (or do not collect if prefixed with no) messages from /dev/log.
output "buffer"|<filename> Records log messages to either a ring buffer or to a file.
rotate <number> The number of log files to keep before rotating them.
server <remote IP:port> The IP address and port of a remote syslog server that will receive log messages.
size <kb> The maximum size in kilobytes of the buffer or file when output "buffer" or output <filename> is set.
